Water detection sensor | HY-B sensor
0 Review | Add review
Industrial floor sensor | Robust and rideable (strong!)

Product number

VN13010011

Default delivery time

1 working day (ordered before 09.30u)

€ 265,50
excl. VAT
€ 321,26
incl. VAT
Quantity:
Order


Product description

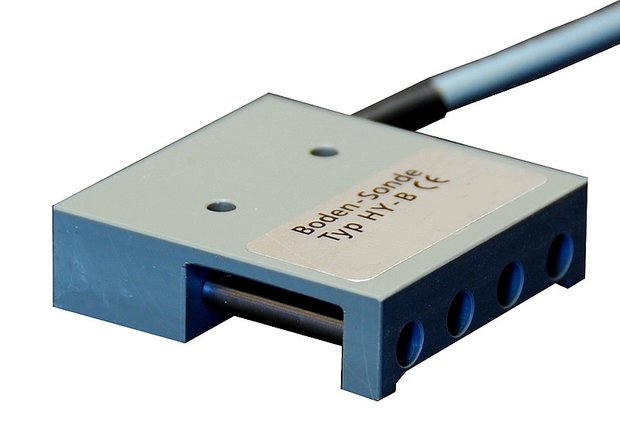

Robust water sensor with 4 stainless steel electrodes, designed for harsh conditions. This sensor for floor water detection has a fixed measurement height of 3 mm. This prevents alarm in normal situations. The industrial water sensor works according to the conduction principle and is connected to the DIN detector with 2 relays or a similar water detector.

Applications

Ride-on floor water detector

Thanks to its strong, hard housing, the sensor is “walkable” and resistant to vehicle wheels. Therefore very suitable for water detection in warehouses (forklifts) and factory buildings. Other applications: parking garages, tunnels, technical rooms at bridges, locks and pumping stations, air handling units, laboratories, archive basements and other places where robust, professional quality is required.

Sensor for harsh conditions

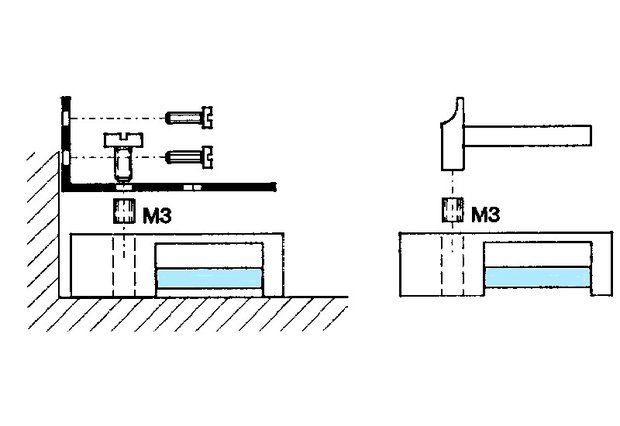

This industrial floor sensor does not respond to dust and moisture or thin layers of water. The sensor housing has 2 holes for mounting with M3 bolts or screws, on a (concrete) floor, or on the wall with a bracket.

Specifications

  • Type: point detection-conduction
  • Sensor: 4x stainless steel electrode
  • Detection level: > 3 mm
  • Sensor body material: PVC
  • Walkable, driveable: yes

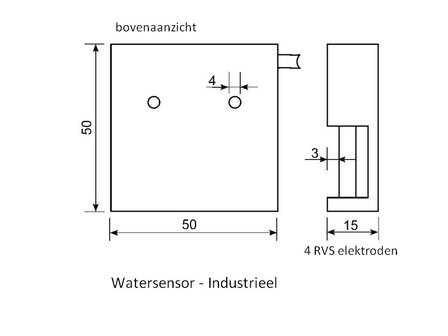

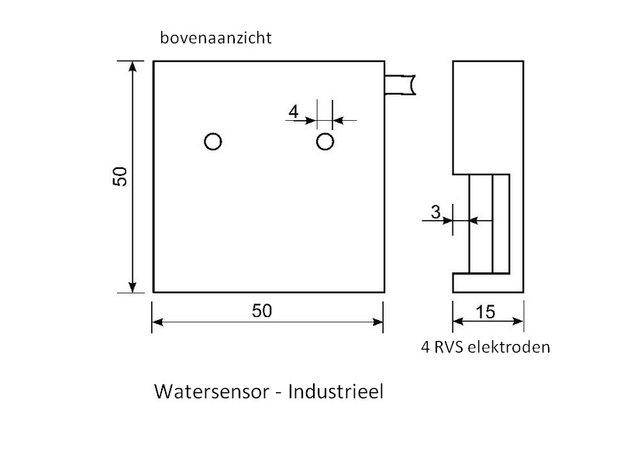

  • Dimensions: 50x50x15 mm
  • Housing weight: 350 g
  • Connection wires: 2x 0.75 mm²
  • Cable: Ø 5.5 mm, long 5 m
  • Operating range: -20...+70 °C
  • Safety class: IP67
  • Hallmark: CE

*Please note that a basic knowledge of electrical engineering is required (for installation) when purchasing some products on our web shop.
