Product description
The drip tray sensor is connected to a
water detector or

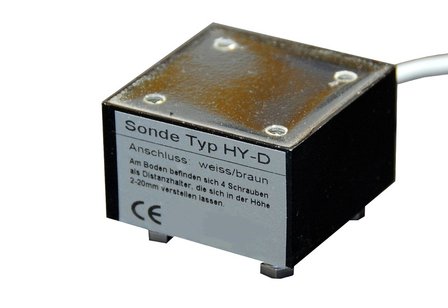

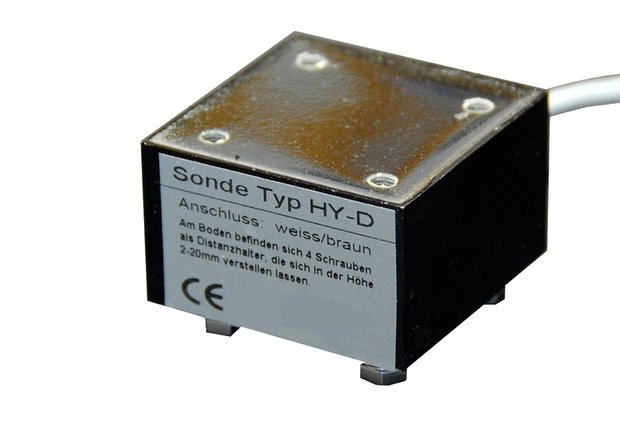

cell phone detector or a BMS. This water sensor is encapsulated in a robust housing with 2 detection contacts on the bottom, intended to be placed on the floor (under a machine) or in an AHU.
Applications
Adjustable detection height

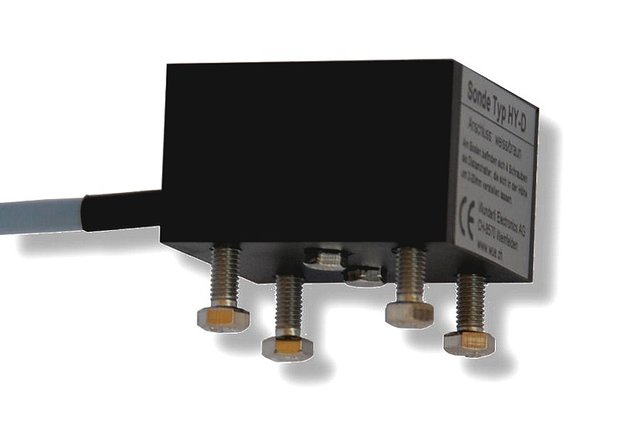

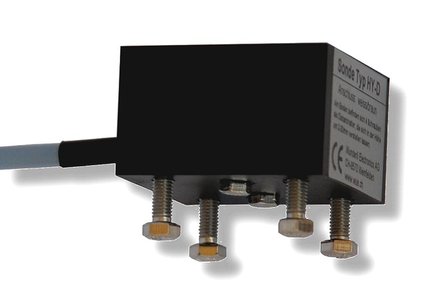

The drip tray sensor operates interference-free on the metal surface of a drip tray. By means of 4 screws you can accurately adjust the measurement height (detection level) of the sensor contacts. This sensor can also be used on a (sometimes) wet floor, where a small layer of water may not cause an alarm.
Professional industrial quality.
The sensor block contains no screw holes for mounting brackets, etc. The housing is provided with a fixed connection cable (flexible and sturdy) that can be extended or shortened if desired. Because this sensor is loose on the floor it is not suitable for places where people walk; for such applications we recommend the water detection sensor.
Specifications
- Type: point detection-conduction
- Sensor: 2 contacts stainless steel
- Detection height: 2...20 mm
- Sensor connection/cable: up to 60 meters
- Sensor block material: PVC
- Dimensions: 50x50x30 mm
- Weight sensor block: 400 g
- Connection wires: 2x 0.25 mm²
- Standard connection/cable: Ø3.5 mm, long 5 meters
- Operating range: -20...+70 °C
- Safety class: IP67
- Hallmark: CE
*Please note that a basic knowledge of electrical engineering is required (for installation) when purchasing some products on our web shop.
