Product description

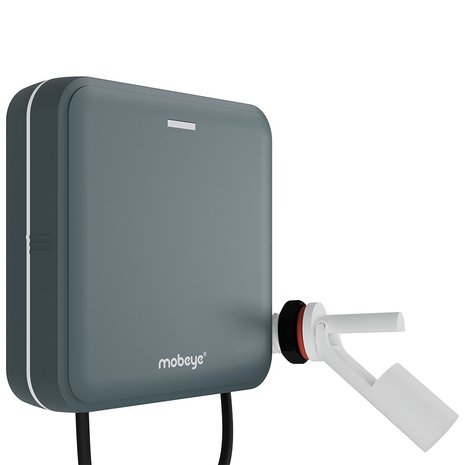

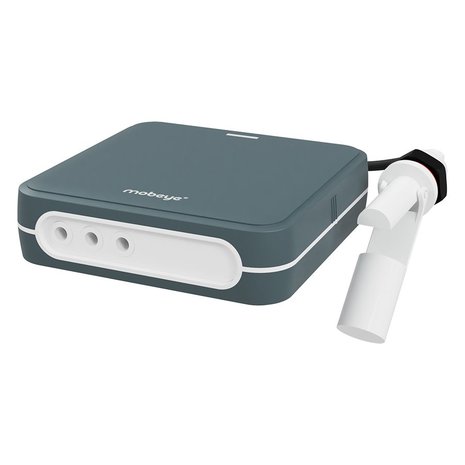

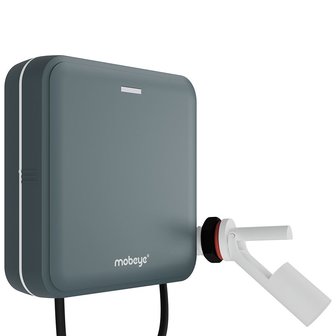

The Mobeye WaterGuard-FS is a reliable water detector for reporting changes in water levels. Alarm notifications are via push message, telephone call, text message or e-mail

Applications

Tank
Water basin
Dirty and clean water
Bilge water
Swimming pool

With the float sensor the Mobeye WaterGuard-FS monitors the water level in a tank, basin or water tank. To monitor a second water level connect a second Float Sensor. Operates on battery power or external voltage. If external power is lost, it also sends a power failure notification.

Operation

Float detects water level
This water detector transmits via the GSM network when the water level is too high or too low. The float transmits a NO/NC signal to the corresponding GSM detector.
For extra reliability or a second measuring point, a float can also be connected to the other signal input!

Alarm in case of mains voltage failure
The GSM detector operates for more than one year on a set of batteries and automatically sends an SMS when they are low.
When using mains power (mains adapter option), it also reports “power failure. Loss of mains power is often indicative of an approaching problem, for example, pump failure.
If this fails, a notification follows. The internal batteries ensure that the alarm detector continues to work for a long time. The WaterGuard-FS continues to monitor the float sensor and second input contact and will still transmit alarm messages. When power is restored, a signal also follows.

Text alert to 5 phone numbers
The GSM water detector sends an SMS and/or call. You can set as many as 5 different phone numbers for this purpose, so that an alarm is almost always noticed.

Once someone has confirmed the alarm call, the remaining numbers are no longer called. You can set the call sequence yourself.

GSM detector with intelligent functions
This compact universal alarm detector has various options, such as choice of SMS and/or call, automatic switch-on and switch-off times, free alarm texts per input, alarm delays, test messages, etc.

Specifications

Inputs: 2x NO/NC
Batteries: 2x CR123 (included)
Option: adapter for 230 Volt
Sensor: float switch (1x)
Cable length float: 1.5 m
Float: long 55 mm, Ø 13 mm
Status indication: LED light
Number recognition: yes
Material: plastic, black
Temperature: -10...+50 °C
Module dimensions: 94 x 94 x 28 mm
Manual: Dutch
Weight: 80 g
Hallmark: CE

Option: power adapter + cable

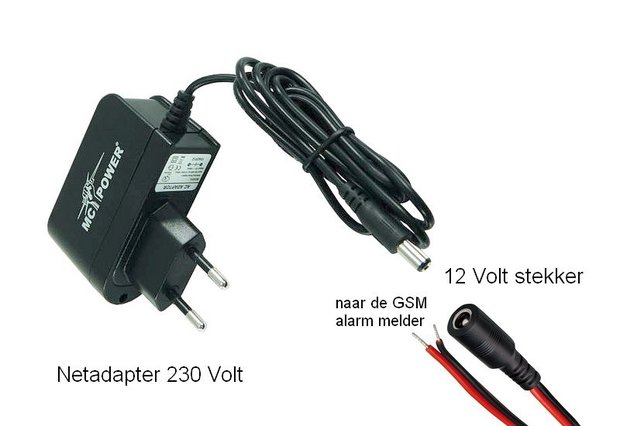

Compact mains adapter, fits into socket with or without protective earth. The GSM water detector also gives an alarm when the mains voltage fails!
Complete with connection cable; the red wire is + and the - is black. Equipped with coax plug for quick connection and disconnection.

Mains adapter: fits into wall socket
Connection voltage: 100...240 volts
Power consumption: 5.4 watts
Output: 12 Volt DC voltage
Maximum current: 450 mA
Short-time current: < 500 mA
Dimensions: 66 x 39 x 24 mm
Indicator light: LED, red
Mains plug: without earth
Mains cable: approx. 1.3 m

Connection cable: 2 m
Hallmark: CE

Click on the following link to view the sim card cost of the standard sim card included from the manufacturer: https://www.mobeye.com/sim-portal [mobeye.com]

Added value sim/portal
As a sim card, we recommend activating the included Mobeye sim card. With this the device communicates via both 4G LTE-M and 2G and ís “multi-provider”. It chooses the strongest network on site, has a very good penetrability and thus gives a reliable connection. With the Mobeye SIM card the device is also connected to the Mobeye Portal and the Mobeye Messages app. This gives extra security and user-friendliness. The dashboard shows the status of one or more devices at a glance. Programming is done online, incoming test messages are automatically checked, in case of problems contacts are warned by app, call, SMS and/or e-mail. Forwarding to a monitoring center (PAC) is also possible. The SIM card costs € 4/month* excluding VAT (flat fee for normal use), (annual) payment is online, or -on request- on invoice. Deployable throughout Europe. *Note: prices may vary. See link below for current prices.

An own SIM card is also possible (NL: KPN or Vodafone, no t-Mobile or subsidiaries). The device then works (only) via 2G and the Mobeye Portal functions are no longer available. At alarm it will call and/or sms (to max. 5 numbers). Please note that a prepaid card expires if the card is not used for too long.
Click on the following link to view the SIM card cost of the standard SIM card supplied from the manufacturer: https://www.mobeye.com/sim-portal [mobeye.com]

Demo portal all models
Using the details below you can log in to a demo portal for all models. Here you can choose the model of your choice and see what you can set up, view and track and review.
Demo Portal:
URL: mymobeye.com
Username: guest
Password: mobeye
Tip: set the screen via the globe at the top right to “Dutch”.

*Please note: when purchasing some products on our webshop, a basic knowledge of electrical engineering is required (for installation).
